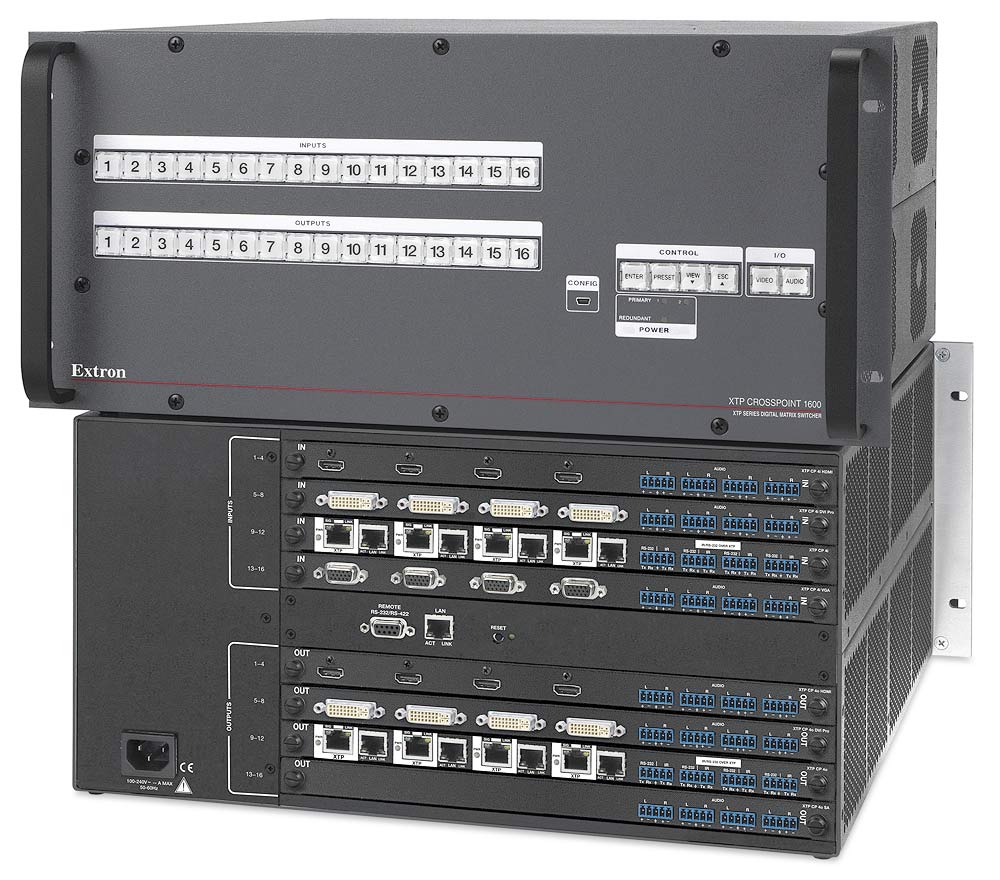

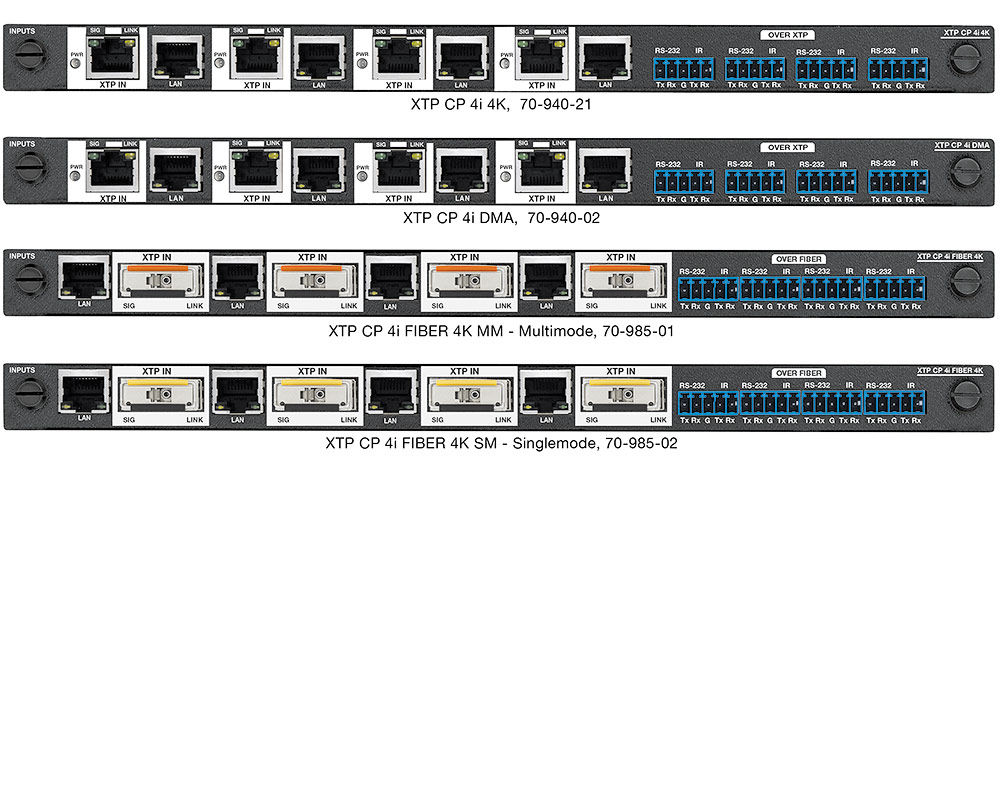

Number of input slots

4

      Input video signal format

HDMI, DVI, 3G-SDI, RGBHV, RGBS, RGsB, RsGsBs, YUV, S-video, composite video, XTP twisted pair, XTP fiber

      Input audio signal format

PCM up to 8 ch, Dolby Atmos?, Dolby? TrueHD, Dolby Digital Plus?, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio?, DTS-HD High Res, DTS 96/24, DTS-ES?, DTS, analog stereo

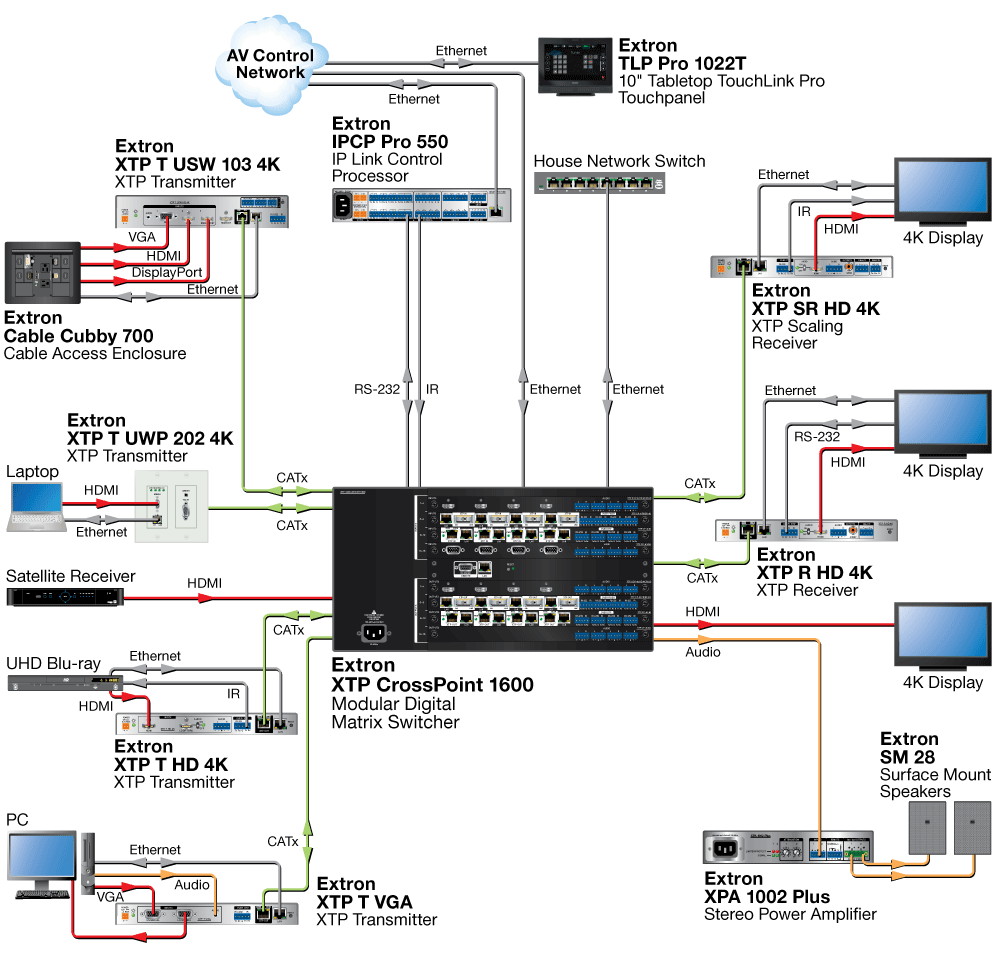

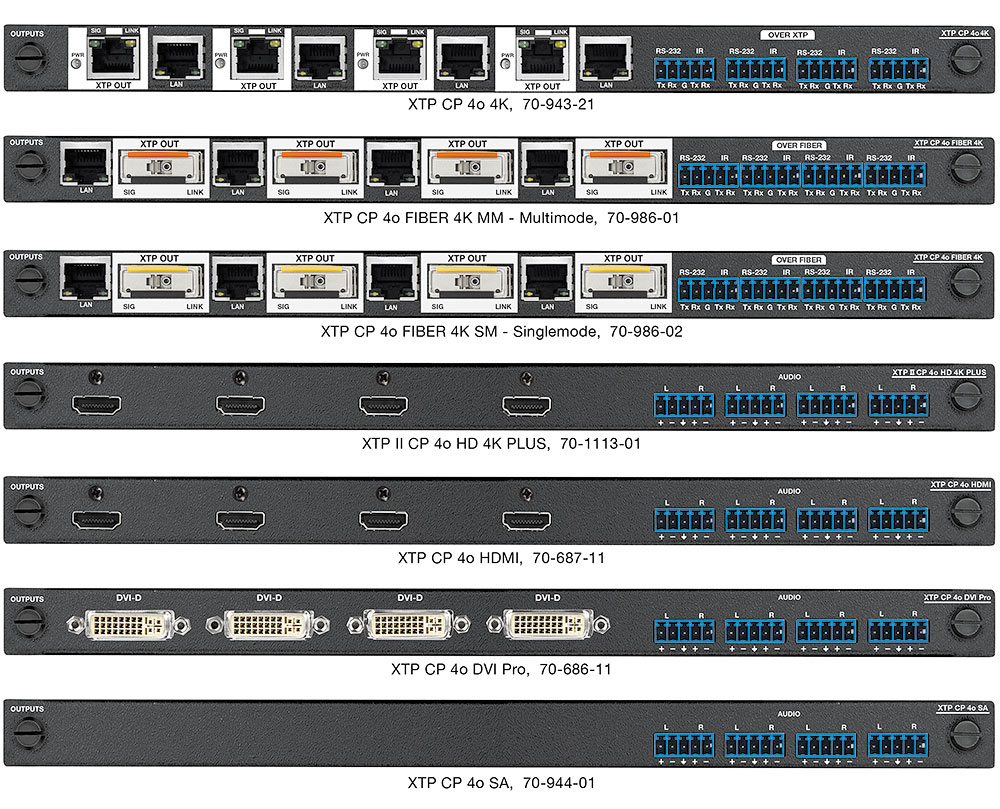

   Number of output slots

4

      Output video signal format

HDMI, DVI, XTP twisted pair, XTP fiber

      Output audio signal format

PCM up to 8 ch, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio, DTS-HD High Res, DTS 96/24, DTS-ES, DTS, analog stereo

   Backplane

      Switcher

16x16 matrix

      Maximum throughput

15.2 Gbps

Communications — switcher host ports

   Serial host control port

1 bidirectional RS-232 or RS-422, rear panel female 9-pin D connector

   Baud rate and protocol

9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity, no flow control

   Serial control pin configurations

      RS-232

2 = Tx, 3 = Rx, 5 = GND

      RS-422

2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+

   USB control port

1 front panel female mini USB B

   USB standards

USB 2.0, low speed

   Ethernet control port

1 female RJ-45

   Ethernet data rate (for network communication)

10/100Base-T, half/full duplex with autodetect

   Ethernet protocol

ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet

   Ethernet default settings

Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Default gateway = 0.0.0.0
DHCP = off

   Web server

Up to 200 simultaneous sessions
7.0 MB nonvolatile user memory

   Program control

Extron XTP System Configuration Software for Windows?
Extron Simple Instruction Set (SIS?)
Microsoft? Internet Explorer? ver. 6 or higher, Telnet

General

   Power

Internal
Input: 100-240 VAC, 50-60 Hz
Redundant power supply is optional.

   Power consumption

29.6 to 637 watts, depending on the configuration

      With primary power supply only

         115 VAC, 60 Hz

30.6 watts

         240 VAC, 50 Hz

29.6 watts

      With both primary and redundant power supplies

         115 VAC, 60 Hz

44.0 watts

         240 VAC, 50 Hz

39.5 watts

   Remote power capability

Supports up to 28 XTP twisted pair endpoints

   Temperature/humidity

Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

   Cooling

Fan, right to left (as viewed from front panel)

   Thermal dissipation

101 to 2174 BTU/hr, depending ont he configuration

   Mounting

      Rack mount

Yes

   Enclosure type

Metal

   Enclosure dimensions

8.75" H x 17.0" W x 17.5" D (5U high, full rack wide)
(22.2 cm H x 43.2 cm W x 44.5 cm D)
(Depth excludes connectors. Width excludes rack ears.)

   Product weight with boards installed

39.0 lbs (17.7 kg)

   Vibration

ISTA 1A in carton (International Safe Transit Association)

   Regulatory compliance

      Safety

CE, c-UL, UL

      EMI/EMC

CE, C-tick, FCC Class A, ICES, VCCI, KCC

      Environmental

Complies with the appropriate requirements of RoHS, WEEE.

   Product warranty

3 years parts and labor

   Everlast power supply warranty

7 years parts and labor
